software overview
Aster Microair is equipped
with:

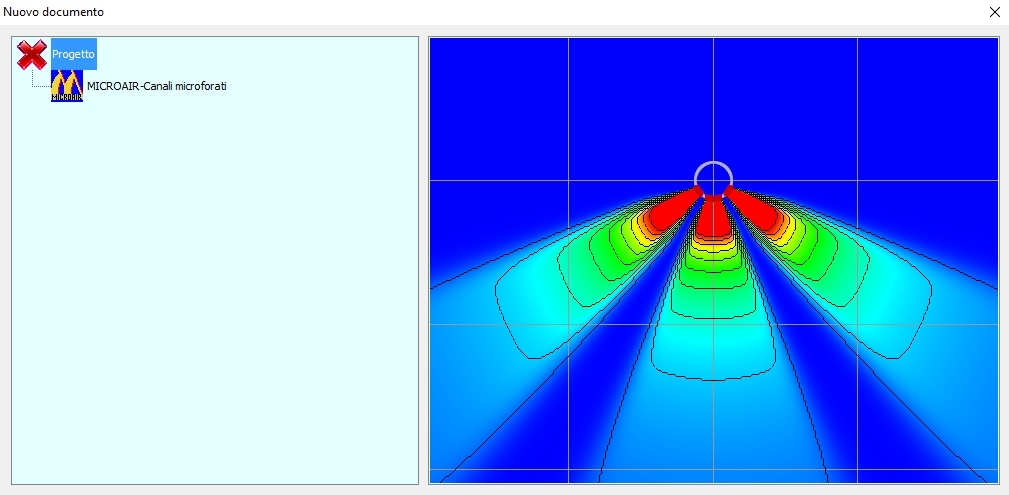

- Wizard for guided generation of the project, with a reduction in time to define the implant system and user-friendly for non-expert users.

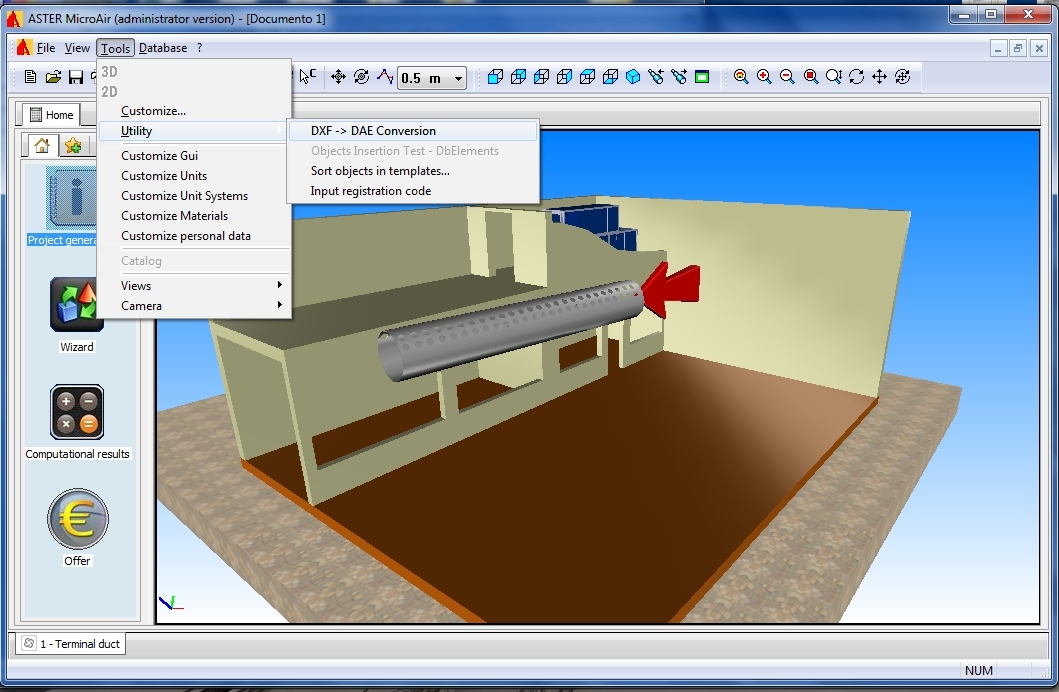

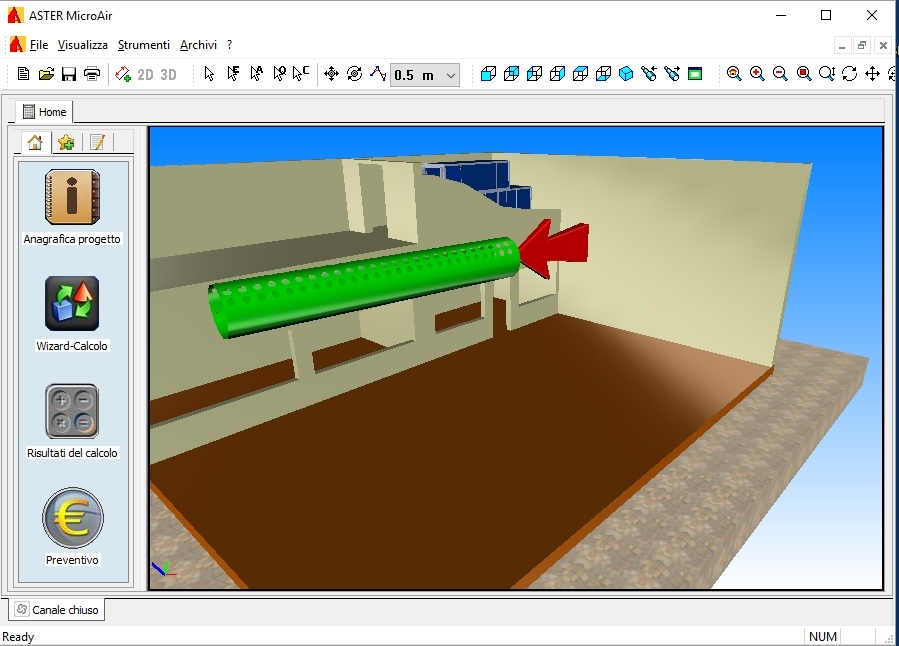

- environment with 3D visualization of plant components
- Ducts with constant diameter and variable diameters
- Project generated from standard configurations already in the software, and user-editable be increased.
- Automatic budget generation and the facility layout with parts list, bill of material editable manually.
-
Full Technical Report and Budget in RTF format , with elements codes, technical
and commercial conditions.
-
Software and reports are customizable with company branding and
archive products.
- Multilingual and multi License
TECHNICAL CALCULATION
Through a simple wizard that guides the user through the various steps, ASTER ®
Microair perform the calculation of indoor air distribution
coming form high induction perforated metallic and fabric ,circular and semi-circular, duct for heating and cooling. This
is based on the number of holes stripes, angle positioning, to the number ,
diameter and the pitch of the holes according to the speed profile to a fixed
distance. Microair is personalized with the characteristic data of the Company as
diameters, materials, logos, images etc.
Input data required by the software
Air data to be entered to inlet duct
- air flow rate
- available prevalence
- air temperature
- Relative humidity
- reference height from the floor and maximum permissible air speed at that height.
- room temperature
- room relative humidity
dimensional data of the duct and the environment
- length of the duct
- width of the zone influence of the duct
- duct distance from to the floor , referred to the axis or to the edge of the duct
-
available standardized diameters of the ducts
position of the holes (phased parallel rows, staggered parallel rows etc.) - distance of holes
- distances between adjacent rows
- angle between the plane containing the axis of the holes and the vertical plane
VARIABLE-SECTION DUCTS
ASTER MICROAIR also performs calculations on systems with ducts whose cross-sections vary or are connected to various sections of ducts and manifolds, etc.

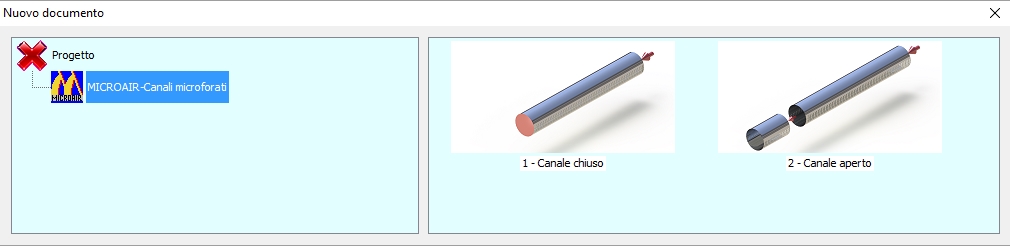

User decide whether to proceed with this type of system based on the choice the software presents in the initial phase (open duct or closed duct).
For details, visit the dedicated page on this website.
The same input data as for single ducts is required, plus some data regarding the change in cross-section.
BUDGET MODULE
ASTER ® Microair, customized with company data, enables the user to automatically generate a bill of materials, components and accessories and thus allows to issue a quotation plant.
Output data of budget module

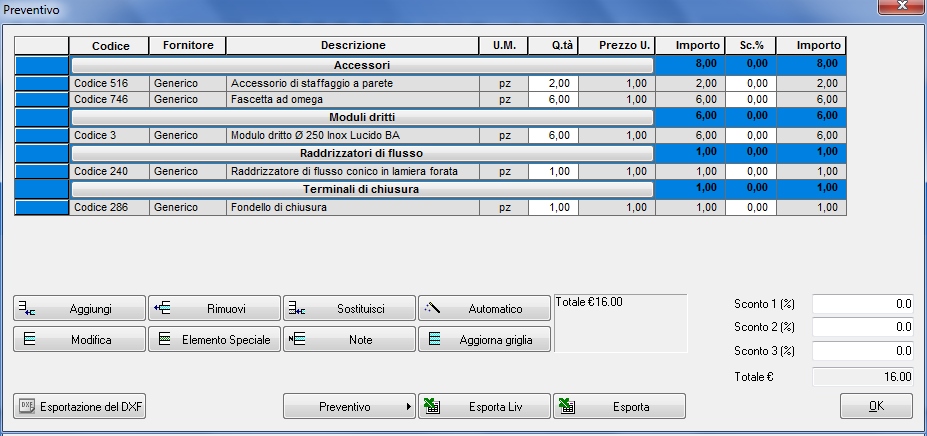

- Window with bill of elements and Budget
-
Feature on the management of codes in the quotation
window, filters on product families, management of special elements
-
Detailed budget reports and prt list in RTF format,
customizable by the user
- Prints of the budget, part list and Trade Conditions
PERFORATED SHEET
ASTER ® Microair has a tool for automatic export of DXF for the development of perforated sheet metal, both for laser cutting for punching with notching
Data for the export development sheet
- in the window is active rhe export of DXF with notching and with the two reference dimensions
- in the same window it's possible to change the perforated and not perforated stretch.
- Output of the sheet files with the possibility to manage staggered rows of holes
- Management of an offset for the perforated area of duct
