Outputs

Results

The result of the calculation will provide the table of available diameters of the duct  with relative state of the verification

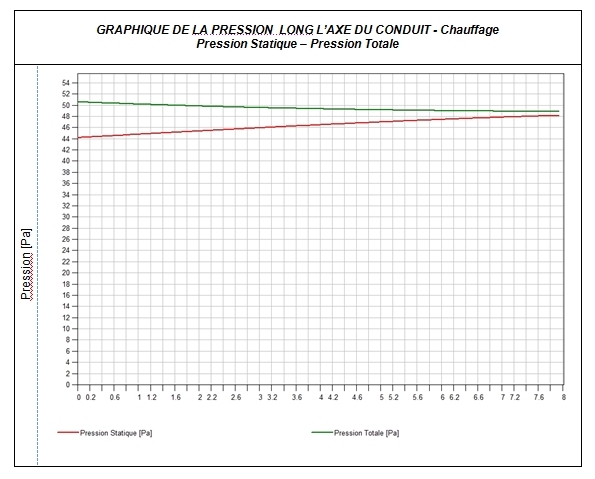

Calculation results of pressure, speed and temperature in the duct are presented in the xy graphs

The status of the verification is indicated positive for solutions that comply the conditions required by the project:

 Air flow rate Q = Q required

 Static pressure inlet <= available static pressure

 Indoor air speed Va   must be Vmin<Va< Vmax

 Air speed in duct Vc <= Vcmax


Speed contour maps

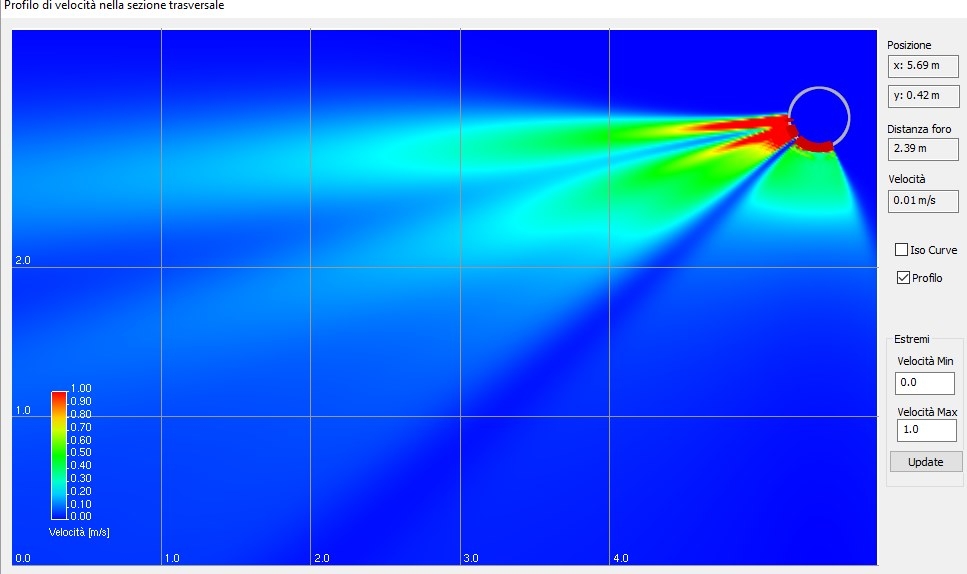

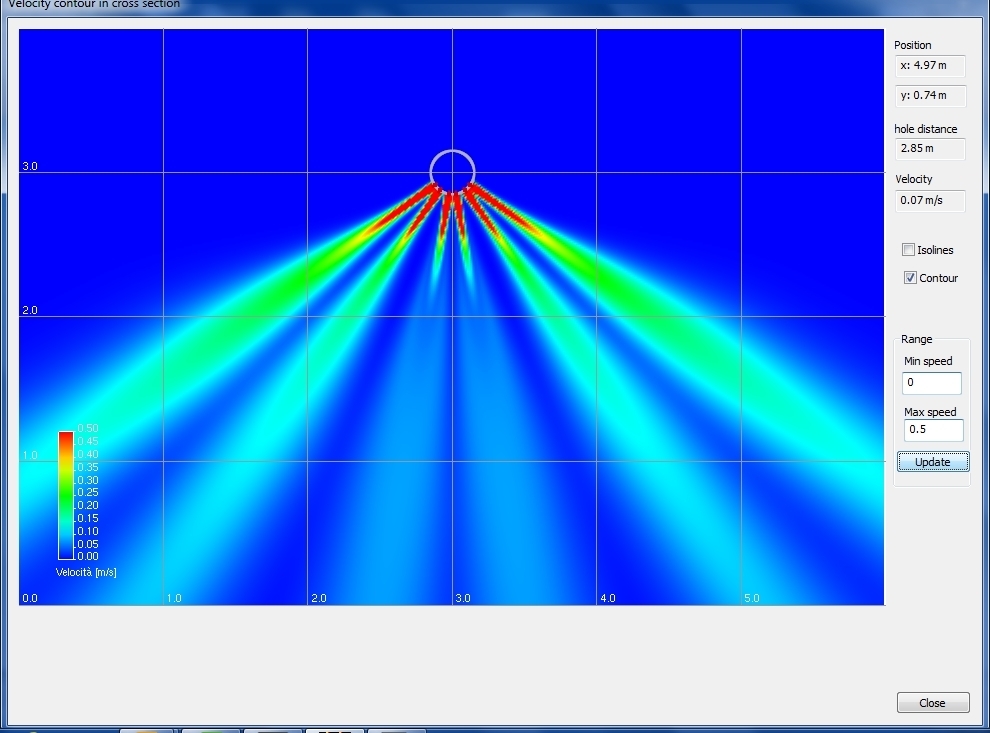

Calculation results are presented through the indoor air speed maps in a vertical plane


Reports

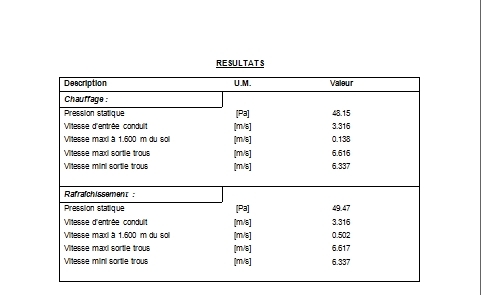

It can be created various types of reports in RTF-Word format containing the characteristic data of the project,  results of the calculations, speed maps and graphics.  Reports can be customized with logos and Company images
